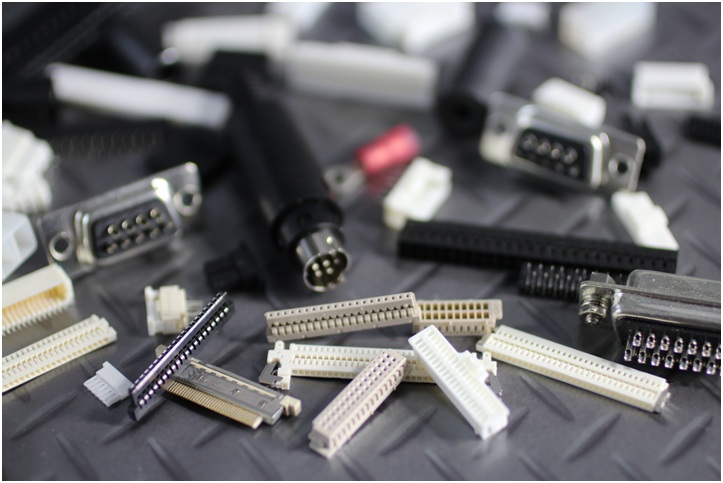

Category: Connectors We Support
Below is a listing of Connectors that we are tooled for. The list is searchable. If you do not find what you are looking for, there is still a very good chance that we can add, or already can support your requested connector on our existing equipment.
Dont recognize the connector in the manual you are seeing? Many companies are using less expensive equivalent connectors on their peripheral devices such as LCD panel and Driver Boards. Quadrangle is very good at determining equivalent connectors which cross to more popular name brands such as Hirose, Molex, JAE, JST etc. Contact our Engineers to help find what that odd connector part number you don't recognize crosses to. Connector Specs and actual pictures help greatly.
Quadrangle strives to support all popular connectors seen on various components and peripherals throughout industry. We are always adding new connectors and crimps/terminals. In some cases we can support new connectors on existing tooling and equipment. In order to confirm this, we may need to purchase sample crimp in REEL FORM (for semi-automated equipment) to test them. Quadrangle will gladly do this, however, if you would like to Expedite This Process -- customers are always welcome to inquire with Quadrangle Engineers first (with a spec sheet), and upon Engineer confirming, the customer can supply the crimps to us for testing (REEL FORM ONLY). Customer Supplied Material is often the more efficient and quicker way to confirm if we can support the new connector series for your upcoming cable needs.
- Inquire with our Engineers to answer any and all questions
- Flying Leads available for all connectors
- Learn more about our Mil-Spec Connectors
Contact us to learn how we can assist you with your cable needs. At Quadrangle our Engineers are also our Sales team. You will work directly with our Application Engineers who will guide you through the entire cable process including your custom quote. We believe this helps to provide a superior customer experience from concept to turnkey solution.
Confused? Don't be! More often than not our customers are unfamiliar with the process of acquiring a cable. Our Engineering/Sales support is FREE of charge! We make it as easy as possible to assist you with the design and requirements of your request. Starting with our custom quote, throughout the purchase, and with our continual support over the life of our products, we are sure we will be an asset to you and your company. We consider it our goal to take out most of the guess work providing a simple process resulting in a turnkey product we assure you will be satisfied with.
| Connector Manufacturer | Manufacturer Part Number | Stock flying lead cable P/N |
|---|---|---|
| Hirose | DF13-12S-1.25C | Contact Us |
| Hirose | DF3-2S-2C | Contact Us |
| Hirose | DF9-41S-1V (20) | QD4293 REV A, QD4294 REV A |
