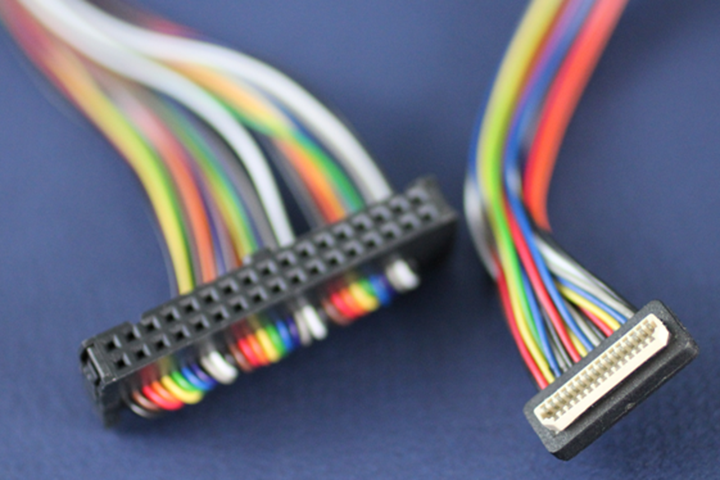

Category: FPDI-1/VESA TYPE/DF9

FPDI-1 / VESA TYPE. Used primarily with TTL display applications, these products are often times more commonly identified by the Hirose DF9 "D" shaped connector which is synonymous with this type of cable. We  have many interfacing solutions available for this product line. Although TTL is the predecesor to LVDS signally, TTL panels still hold a significant share of the display market. We continue to grow and support these types of cables year in and year out as we have done since 1985.

  • Rugged Overmolded Design
  • Flat Flex (FFC) Solutions
  • Shielding options available
  • DF9 to 0.50mm pitch FFC parts
  • Round wire solutions
  • Custom lengths available
  • Shielding options available
  • Flying leads
  • Adapters
  • Custom turnkey solutions available

Contact us to learn how we can assist you with your cable needs. At Quadrangle our Engineers are also our Sales team. You will work directly with our Application Engineers who will guide you through the entire cable process including your custom quote. We believe this helps to provide a superior customer experience from concept to turnkey solution.

Confused? Don't be! More often than not our customers are unfamiliar with the process of acquiring a cable. Our Engineering/Sales support is FREE of charge! We make it as easy as possible to assist you with the design and requirements of your request. Starting with our custom quote, throughout the purchase, and with our continual support over the life of our products, we are sure we will be an asset to you and your company. We consider it our goal to take out most of the guess work providing a simple process resulting in a turnkey product we assure you will be satisfied with.

FPDI-1/VESA TYPE/DF9

Item Code Image Description Pitch (mm) Conductors Orientation Plating Length (in) Length (mm) File
410-00099

QD4606-2.5:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 2.5" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

2.50 63.5mm
410-00055

QD4606-8:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 8" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

8
410-00063

QD4747-10:

HIROSE DF9-31S-1V TO FFC

This part is a Hirose DF9-31S-1V connector to a 32 position 0.50mm pitch 10" long FFC. The FFC exits the HIR DF9-31S-1V connector from the odd pin side. The 32 position 0.50mm pitch FFC can be used with a 32 position ZIF connector. RoHS Compliant.

10
410-00082

QD9810-8:

HIROSE DF9-41S-1V TO HIROSE DF9-41S-1V

This double ended cable has Hirose DF9-41S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

8 203
410-00090

QD7739:
HIROSE DF9-31P-1V TO FLYING LEADS
Wires exit the overmold on the side of the connector with the Odd Numbered Pins. RoHS Compliant

Mates with: DF9-31S-1V(32), DF9B-31S-1V(32), DF9-31S-1V(69), DF9B-31S-1V(69), DF9A-31S-1V(22), DF9-31S-1V(32)

31 24.0 610
410-00077

QD5520-3:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

3
CUSTOM

If you don't see what you need, feel free to contact the Quadrangle Products Sales/Engineering department.
sales@quadrangleproducts.com
engineering@quadrangleproducts.com

410-00022

QD3406-12MLD

HIROSE DF9-41S-1V TO HIROSE DF9-41S-1V

This double ended cable has Hirose DF9-41S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins. RoHS Compliant.

12
410-00023

QD3406-3MLD:

HIROSE DF9-41S-1V TO HIROSE DF9-41S-1V

This double ended cable has Hirose DF9-41S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins. RoHS Compliant.

3
410-00026

QD3406-6MLD:

HIROSE DF9-41S-1V TO HIROSE DF9-41S-1V

This double ended cable has Hirose DF9-41S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins. RoHS Compliant.

6
410-00029

QD3406-9MLD:

HIROSE DF9-41S-1V TO HIROSE DF9-41S-1V

This double ended cable has Hirose DF9-41S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins. RoHS Compliant.

9
410-00031

QD4291 REV A:
HIROSE DF9-31S-1V TO FLYING LEADS
Wires exit the overmold on the side of the connector with the Odd Numbered Pins. RoHS Compliant

31 24
410-00032

QD4292 REV A:
HIROSE DF9-31S-1V TO FLYING LEADS

Wires exit the overmold on the side of the connector with the Even Numbered Pins. RoHS Compliant

31 24
410-00033

QD4293 REV A:
HIROSE DF9-41S-1V TO FLYING LEADS
Wires exit the overmold on the side of the connector with the Odd Numbered Pins. RoHS Compliant

41 24
410-00034

QD4294 REV A:
HIROSE DF9-41S-1V TO FLYING LEADS
Wires exit the overmold on the side of the connector with the Even Numbered Pins. RoHS Compliant

41 24
410-00037

QD4560-10:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 10" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

10
410-00038

QD4560-12:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 12" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

12
410-00039

QD4560-18:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 18" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

18
410-00040

QD4560-21:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 21" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

21
410-00041

QD4560-3:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 3" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

3
410-00042

QD4560-4:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 4" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

4
410-00044

QD4560-6:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 6" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

6
410-00045

QD4560-9:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 9" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Even Numbered Pins on one end, and Odd Numbered Pins on the other. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

9
410-00046

QD4583:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

17
410-00049

QD4606-12:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 12" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

12
410-00050

QD4606-3:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 3" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

3
410-00053

QD4606-6:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 6" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

6
410-00056

QD4606-9:

HIROSE DF9-31S-1V TO HIROSE DF9-31S-1V

This 9" long double ended cable has Hirose DF9-31S-1V connectors on each end with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered Pins on both connectors. The mating side of the connectors are on opposite sides of the FFC as each other. RoHS Compliant.

9
410-00058

QD4702-12:

HIROSE DF9-31S-1V TO HIROSE DF9-31P-1V

This 12" long double ended cable has a Hirose DF9-31S-1V connector on one end and a Hirose DF9-31P-1V connector on the other with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered pins. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

12
410-00059

QD4702-3:

HIROSE DF9-31S-1V TO HIROSE DF9-31P-1V

This 3" long double ended cable has a Hirose DF9-31S-1V connector on one end and a Hirose DF9-31P-1V connector on the other with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered pins. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

3
410-00060

QD4702-6:

HIROSE DF9-31S-1V TO HIROSE DF9-31P-1V

This 6" long double ended cable has a Hirose DF9-31S-1V connector on one end and a Hirose DF9-31P-1V connector on the other with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered pins. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

6
410-00062

QD4702-9:

HIROSE DF9-31S-1V TO HIROSE DF9-31P-1V

This 9" long double ended cable has a Hirose DF9-31S-1V connector on one end and a Hirose DF9-31P-1V connector on the other with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered pins. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

9
410-00065

QD4747-12:

HIROSE DF9-31S-1V TO FFC

This part is a Hirose DF9-31S-1V connector to a 32 position 0.50mm pitch 12" long FFC. The FFC exits the HIR DF9-31S-1V connector from the odd pin side. The 32 position 0.50mm pitch FFC can be used with a 32 position ZIF connector. RoHS Compliant.

12
410-00066

QD4747-3:

HIROSE DF9-31S-1V TO FFC

This part is a Hirose DF9-31S-1V connector to a 32 position 0.50mm pitch 3" long FFC. The FFC exits the HIR DF9-31S-1V connector from the odd pin side. The 32 position 0.50mm pitch FFC can be used with a 32 position ZIF connector. RoHS Compliant.

3
410-00068

QD4747-6:

HIROSE DF9-31S-1V TO FFC

This part is a Hirose DF9-31S-1V connector to a 32 position 0.50mm pitch 6" long FFC. The FFC exits the HIR DF9-31S-1V connector from the odd pin side. The 32 position 0.50mm pitch FFC can be used with a 32 position ZIF connector. RoHS Compliant.

6
410-00069

QD4747-9:

HIROSE DF9-31S-1V TO FFC

This part is a Hirose DF9-31S-1V connector to a 32 position 0.50mm pitch 9" long FFC. The FFC exits the HIR DF9-31S-1V connector from the odd pin side. The 32 position 0.50mm pitch FFC can be used with a 32 position ZIF connector. RoHS Compliant.

9
410-00073

QD4824-24:
HIROSE DF9-31S-1V TO RIBBON WIRE FLYING LEADS

This part has a Hirose DF9-31S-1V connector on one end with ribbon wire flying leads on the other end. The connector is oriented so the wires come out on the odd numbered side of the connector, and the ribbon wires on the unterminated side are separated 2".

31 24
410-00076

QD4844-24:
HIROSE DF9-41S-1V TO RIBBON WIRE FLYING LEADS

This part has a Hirose DF9-41S-1V connector on one end with ribbon wire flying leads on the other end. The connector is oriented so the wires come out on the odd numbered side of the connector, and the ribbon wires on the unterminated side are separated 2".

41 24
410-00092

QD4702-16:

HIROSE DF9-31S-1V TO HIROSE DF9-31P-1V

This 16" long double ended cable has a Hirose DF9-31S-1V connector on one end and a Hirose DF9-31P-1V connector on the other with FFC in between. Connectors are oriented so that the FFC exits the overmold on the side of the connectors with the Odd Numbered pins. The mating side of the connectors are on the same side of the FFC as each other. RoHS Compliant.

16
