Category: Micro Coax (ACES, IPEX, JAE)

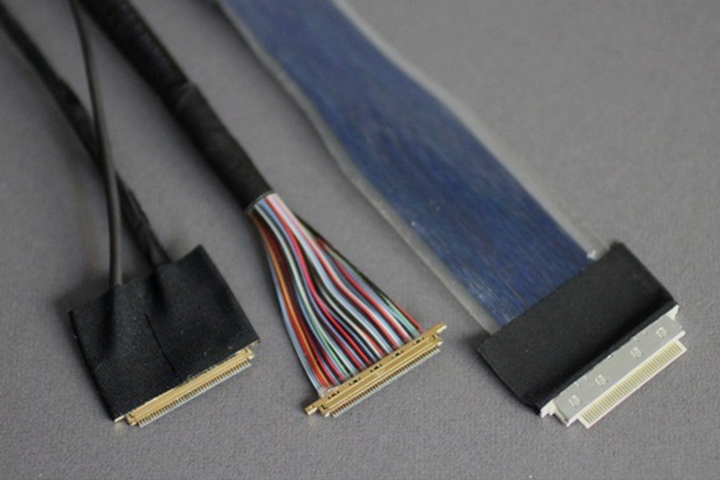

Quadrangle Products now supports Micro Coaxial Cable Assemblies and interconnects for panels, motherboards, and other various components. Many of these connectors are being found on LVDS devices such as LCDs, Embedded Motherboards (most notably: Intel DH61AG, DQ77KB, DN2800MT and D2500CC). From start to finish Quadrangle's Engineers will help to educate and guide customers through the various design challenges that can be associated with micro coax cable designs, and micro coax transitions. Our Micro Coax product line is consistently growing as we add new parts, designs and solutions. Call to inquire and we will be more than happy to discuss your needs.

MOST PROTOTYPE SOLUTIONS ARE AVAILABLE IN 1-2 WEEKS

We now support:

  • Turnkey solutions from Prototype to Production
  • Twisted Pair and Micro Coax (LVDS & eDP Transmission)
  • Complete custom micro coaxial cable assemblies
  • Micro Coax to standard hookup wire (28AWG) transition boards (LVDS)
  • Micro Coax to 28AWG flying leads (via transition board) (LVDS)
  • Value added services (such as EMI shielding)
  • Support of popular connector manufacturers such as IPEX, ACES, UJU, JAE and others
  • Free Engineering Support / Low MOQ’s (10pcs in most cases, samples when available)

Below is a listing of stock products. Please inquire about a custom solution to fit your needs.

Contact us to learn how we can assist you with your cable needs. At Quadrangle our Engineers are also our Sales team. You will work directly with our Application Engineers who will guide you through the entire cable process including your custom quote. We believe this helps to provide a superior customer experience from concept to turnkey solution.

Confused? Don't be! More often than not our customers are unfamiliar with the process of acquiring a cable. Our Engineering/Sales support is FREE of charge! We make it as easy as possible to assist you with the design and requirements of your request. Starting with our custom quote, throughout the purchase, and with our continual support over the life of our products, we are sure we will be an asset to you and your company. We consider it our goal to take out most of the guess work providing a simple process resulting in a turnkey product we assure you will be satisfied with.

Micro Coax (ACES, IPEX, JAE)

Item Code Image Description Pitch (mm) Conductors Orientation Plating Length (in) Length (mm) File
420-00115

SGC1056-PULL-24 Flying Lead:
This 24" long IPEX 20453-040T-01 Flying Lead consists of the IPEX 20453-040T-01 connector and IPEX 20454-040T Shell to unterminated wires with pull bar.

Mates with:
IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3, MSAK24025P40

Connector Equivalent to: TE-5-2069716-3, HD1P040MA1, Starconn 111B40-1210TA-G3; CSTAR LS050-W40B-H10-G, STM PK24025P40

40 24
SGC1118-6

SGC1118-6: IPEX 20846-030T TO IPEX 20846-030T

MATES WITH: IPEX 20849-030E-010, IPEX 20849-030E-020

This cable is pinned out 1:40 and is 6" long

6
SGC1117-6

SGC1117-6: IPEX 20846-030T TO IPEX 20846-030T

MATES WITH: IPEX 20849-030E-010, IPEX 20849-030E-020

This cable is pinned out 1:1 and is 6" long

6
SGC1116-6

SGC1116-6: IPEX 20846-040T TO IPEX 20846-040T

MATES WITH: IPEX 20849-040E-010 , IPEX 20849-040E-020

This cable is pinned out 1:40 and is 6" long

6
SGC1115-6

SGC1115-6: IPEX 20846-040T TO IPEX 20846-040T

MATES WITH: IPEX 20849-040E-010, IPEX 20849-040E-020

This cable is pinned out 1:1 and is 6" long

6

SGC1114-6

IPEX 20453-050T to IPEX 20453-050T micro coax cable

1 to 50 Pinout

Mates with: IPEX 20455-050E, JAE HD1S050HA1, UJU IS050-L50B-C10, Starconn 111A50-0000RA-G3, Starconn 300E50-0010RA-G3

SGC1113-24 Flying Lead:
This 24" long IPEX 20846-040T Flying Lead consists of the IPEX 20846-040T connector, IPEX 20847-040T Shell and IPEX 20848-040T-01 pull bar to unterminated wires

Mates with:
IPEX 20849-040E

Connector Equivalent to:

SGC1112-24 Flying Lead:
This 24" long IPEX 20846-030T Flying Lead consists of the IPEX 20846-030T connector, IPEX 20847-030T Shell and IPEX 20848-030T-01 pull bar to unterminated wires

Mates with:
IPEX 20849-030E

Connector Equivalent to:

SGC1095-2

SGC1095-2 eDP Cable
IPEX 20453-040T to IPEX 20453-040T micro coax cable
eDP/ LVDS Cable
1 to 1 Pinout

Mates with: IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3

2

SGC1095-24 eDP Cable

IPEX 20453-040T to IPEX 20453-040T micro coax cable
eDP Cable
1 to 1 Pinout

Mates with: IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3

24
420-00173

SGC1109-24 Flying Lead:
This 24" long IPEX 20633-040T-01S Flying Lead consists of the IPEX 20633-040T-01S connector and IPEX 2764-0401-003 shell and IPEX 2766-0401 pull bar to unterminated wires

Mates with:
IPEX 20525-240E-01, IPEX 20525-240E-02

Connector Equivalent to:

40 24
420-00172

SGC1111-24 Flying Lead:
This 24" long IPEX 20373-R30T-06 Flying Lead consists of the IPEX 20373-R30T-06 connector and IPEX 2182-030-03 Shell to unterminated wires. The IPEX 20373-R30T-06 and IPEX 2182-030-03 combined are also referred to as IPEX 20380-R30T-06

Mates with:
IPEX 20374-R30E-

Connector Equivalent to:

30 24
420-00171

SGC1110-24 Flying Lead:
This 24" long IPEX 20679-040T-01 Flying Lead consists of the IPEX 20679-040T-01 connector and IPEX 3204-0401 Shell to unterminated wires

Mates with:
IPEX 20682-040E-0240

Connector Equivalent to:

40 24
420-00071

SGC1076 Micro Coax Jumper
IPEX 20472-040T-01 to IPEX 20346-40T-02

IPEX 20472-040T-01 plug in a IPEX 20473-040T-10 housing to IPEX 20345-040T plug in a IPEX 20346-040T housing

CN1 mates with:

IPEX 20474-040E-11, IPEX 20474-040E-12
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02



3 76
420-00027

SGC1028 Micro Coax Jumper
IPEX 20472-040-01 to IPEX 20472-040-01
IPEX 20472-040-01 plug in a IPEX 20473-040T-10 housing to IPEX 20472-040-01 plug in a IPEX 20473-040T-10 housing

CN1 mates with:
IPEX 20474-040E-11, IPEX 20474-040E-12

CN2 mates with:
IPEX 20474-040E-11, IPEX 20474-040E-12

3 76
420-00076

SGC1078 Micro Coax Jumper

IPEX 20453-030T-01 to IPEX 20346-40T-02
IPEX 20453-030T-01 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20455-030, JAE HD2S030HA1
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02



4 102
420-00102

SGC1097-24 Flying Lead:
This 24" long IPEX 20663-230T-01S Flying lead consists of the IPEX 20663-230T-01 connector and IPEX 2764-0301-002 shell to unterminated wire.

Mates with: IPEX 20525-030E-02

30 24
420-00112

SGC1103-6 Micro Coax Jumper
IPEX 20453-030T to IPEX 20453-030T micro coax cable
eDP/ LVDS Cable
1 to 30 Pinout

Mates with:
IPEX 20455-030E, JAE HD1S030HA1, UJU IS050-L30B-C10, Starconn 111A30-0000RA-G3, Starconn 300E30-0010RA-G3



6.0"
420-00111

SGC1102-6 Micro Coax Jumper
IPEX 20453-030T to IPEX 20453-030T micro coax cable
eDP/ LVDS Cable
1 to 1 Pinout

Mates with:
IPEX 20455-030E, JAE HD1S030HA1, UJU IS050-L30B-C10, Starconn 111A30-0000RA-G3, Starconn 300E30-0010RA-G3



6
420-00020

SGC1019 Micro Coax Jumper

IPEX 20453-040T-01 to IPEX 20346-40T-02
IPEX 20453-040T-01 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20455-040, JAE HD2S040HA1
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

4
CUSTOM

If you don't see what you need, feel free to contact the Quadrangle Products Sales/Engineering department.
sales@quadrangleproducts.com
engineering@quadrangleproducts.com

420-00100

SGC1096-12 eDP Cable

IPEX 20453-040T to IPEX 20453-040T micro coax cable

1 to 40 Pinout

Mates with: IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3

0.5 40 12
420-00099

SGC1096-6 eDP Cable

IPEX 20453-040T to IPEX 20453-040T micro coax cable

1 to 40 Pinout

Mates with: IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3

6
420-00098

SGC1095-12 eDP Cable

IPEX 20453-040T to IPEX 20453-040T micro coax cable
eDP Cable
1 to 1 Pinout

Mates with: IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3

12
420-00097

SGC1095-6 eDP Cable
IPEX 20453-040T to IPEX 20453-040T micro coax cable
eDP/ LVDS Cable
1 to 1 Pinout

Double Ended 20453-040T

Mates with: IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3

6
420-00096

SGC1092-24 Flying Lead:
This 24" long IPEX 20453-030T-01 Flying Lead consists of the IPEX 20453-030T-01 connector and IPEX 20454-030T Shell to unterminated wires

Mates with: IPEX 20455-030E, MSAK24025P30

30 24
420-00086

SGC1086-24 Flying Lead:
This 24" long IPEX 20453-050T-01 Flying Lead consists of the IPEX 20453-050T-01 connector and IPEX 2574-1502 Shell to unterminated wires

Mates With: IPEX 20455-050E-76, Starconn 300E50-0010RA-G3

50 24
420-00078

SGK-108 KIT

IPEX 20453-030T-01 Breakout Kit to Discrete Flying Leads

Mates With : IPEX 20455-030, JAE HD2S030HA1

27.75
420-00004

SGC1001 Micro Coax Jumper
IPEX 20346-20T-02 to IPEX 20346-40T-02
IPEX 20345-020T-02 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20347-020E-01, IPEX 20347-020E-02
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3 76
420-00001

QD10361 REV A SGC ADAPTER

Adapter Board which allows transter from MicoCoax Jumpers to Round Discrete wire.
Mates with: IPEX 20346-40T & JAE FI-W41S

0.75
420-00006

SGC1002 Micro Coax Jumper

IPEX 20346-25T-02 to IPEX 20346-40T-02
IPEX 20345-025T-02 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20347-025E-01, IPEX 20347-025E-02
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3
420-00008

SGC1003 Micro Coax Jumper

IPEX 20346-30T-02 to IPEX 20346-40T-02
IPEX 20345-030T-02 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20347-030E-01, IPEX 20347-030E-02
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3
420-00010

SGC1004 Micro Coax Jumper

IPEX 20346-40T-02 to IPEX 20346-40T-02
IPEX 20345-040T-02 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20347-040E-01, IPEX 20347-040E-02
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3
420-00012

SGC1017 Micro Coax Jumper

IPEX 20346-35T-02 to IPEX 20346-40T-02
IPEX 20345-035T-02 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20347-035E-01, IPEX 20347-035E-02
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3
420-00014

SGC1018 Micro Coax Jumper
JAE FI-JH40C-B to IPEX 20346-40T-02

CN1 mates with:

JAE FI-JH40S-HF10
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3
420-00016

SGK-101 KIT
IPEX 20346-25T-02 Breakout Kit to Discrete Flying Leads
Mates With:IPEX 20347-025

27.75
420-00017

SGK-102 KIT
IPEX 20345-030T-02 Breakout Kit to Discrete Flying Leads
Mates With: IPEX 20347-030

27.75
420-00018

SGK-103 KIT
IPEX 20345-040T-02 Breakout Kit to Discrete Flying Leads
Mates With: IPEX 20347-040

27.75
420-00019

SGK-104 KIT
JAE FIJH-40C-B Breakout Kit to Discrete Flying Leads

27.75
420-00022

SGK-105 KIT

IPEX 20453-040T-01 Breakout Kit to Discrete Flying Leads

Mates With : IPEX 20455-040, UJU IS050-L40B-C10

27.75
420-00024

SGC1022 Micro Coax Jumper
IPEX 20472-040T-01 to IPEX 20346-40T-02

IPEX 20472-040T-01 plug in a IPEX 20473-040T-10 housing to IPEX 20345-040T plug in a IPEX 20346-040T housing

CN1 mates with:

IPEX 20474-040E-11, IPEX 20474-040E-12
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3
420-00026

SGC1023 Micro Coax Jumper

IPEX 20453-030T-01 to IPEX 20346-40T-02
IPEX 20453-030T-01 plug to IPEX 20345-040T-02 plug

CN1 mates with:

IPEX 20455-030, JAE HD2S030HA1
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

4
420-00028

SGC1029 Micro Coax Jumper
ACES 88441-040 to IPEX 20346-40T-02

CN1 mates with:

ACES 88341-40
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

4
420-00031

SGC1030 Micro Coax Jumper
IPEX 20346-40T-02 to IPEX 20346-40T-02

CN1 mates with:

IPEX 20347-040E-01, IPEX 20347-040E-02
CN2 mates with:
IPEX 20347-040E-01, IPEX 20347-040E-02

3
420-00041

SGK-106 KIT

ACES 88341-40  Breakout Kit to Discrete Flying Leads

Mates With:ACES 88341-40 / Starconn 107F40

18
420-00068

SGC1038-24: ACES 88441-040 connector to unterminated wires
Length 24"
Suitable For Use With:
Intel DH61AG
Intel DQ77KB
Intel DN2800MT
Intel D2500CC
Mates with:
ACES 88341-40
Compatible with Starconn 107F40

0.5 40 24
420-00069

SGC1056-24 Flying Lead:
This 24" long IPEX 20453-040T-01 Flying Lead consists of the IPEX 20453-040T-01 connector and IPEX 20454-040T Shell to unterminated wires

Mates with:
IPEX 20455-040E, JAE HD1S040HA1, UJU IS050-L40B-C10, Starconn 111A40-0000RA-G3, Starconn 300E40-0010RA-G3, MSAK24025P40

Connector Equivalent to: TE-5-2069716-3, HD1P040MA1, Starconn 111B40-1210TA-G3; CSTAR LS050-W40B-H10-G, STM PK24025P40

40 24
