Category: Adapter Boards/Solutions PCB – FPC – Wire Designs

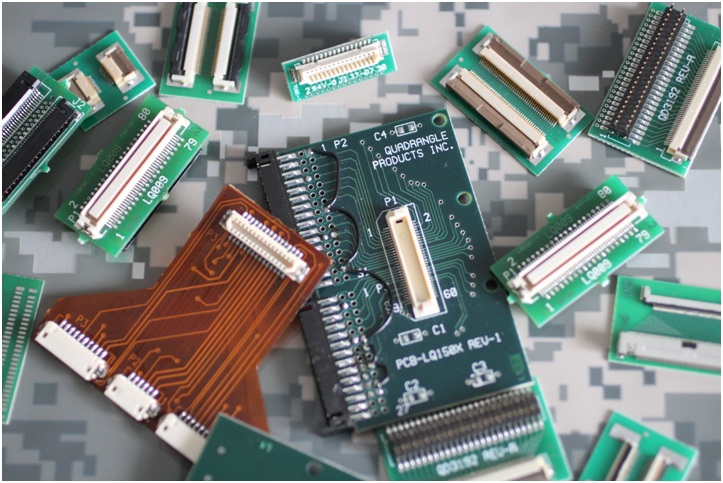

Often times component and peripherals have conflicting style connector mounted on them. We have many soutions already designed to adapt from one interface to another. We also have the ability to design custom PCB and FPC adapter solutions if your requirement is unique and in need of such services. Inquire with our Engineering team and we will be more than happy to assist you with solving you complicated transition encounters.

Many in stock:

  • Pitch conversion
  • FFC/FPC to Round Wire breakout boards
  • Micro Coaxial adapter solutions
  • Board-to-Board style breakout boards
  • Custom designs available
  • PCB and FPC solutions

Contact us to learn how we can assist you with your cable needs. At Quadrangle our Engineers are also our Sales team. You will work directly with our Application Engineers who will guide you through the entire cable process including your custom quote. We believe this helps to provide a superior customer experience from concept to turnkey solution.

Confused? Don't be! More often than not our customers are unfamiliar with the process of acquiring a cable. Our Engineering/Sales support is FREE of charge! We make it as easy as possible to assist you with the design and requirements of your request. Starting with our custom quote, throughout the purchase, and with our continual support over the life of our products, we are sure we will be an asset to you and your company. We consider it our goal to take out most of the guess work providing a simple process resulting in a turnkey product we assure you will be satisfied with.

Adapter Boards/Solutions PCB - FPC - Wire Designs

Item Code Image Description Pitch (mm) Conductors Orientation Plating Length (in) Length (mm) File
CUSTOM

If you don't see what you need, feel free to contact the Quadrangle Products Sales/Engineering department.
sales@quadrangleproducts.com
engineering@quadrangleproducts.com

400-00100

QD19830AD:
This part is a FPC that goes from the Molex 501783-3009 connector to a discrete wire header.

MATES WITH:
MOLEX 501786-3091, MOLEX 501786-3092, MOLEX 501864-3091, MOLEX 501864-3092

FOR USE WITH LCD PANEL: Innolux G170J1-LE1

4
420-00086

SGC1086-24 Flying Lead:
This 24" long IPEX 20453-050T-01 Flying Lead consists of the IPEX 20453-050T-01 connector and IPEX 2574-1502 Shell to unterminated wires

Mates With: IPEX 20455-050E-76, Starconn 300E50-0010RA-G3

50 24
420-00001

QD10361 REV A SGC ADAPTER

Adapter Board which allows transter from MicoCoax Jumpers to Round Discrete wire.
Mates with: IPEX 20346-40T & JAE FI-W41S

0.75
400-00019

QD2918 DF9-31 ADAPTER:

This adapter has a Hirose DF9-31S-1V connector, and can be used to plug into a Hirose DF9-31P-1V header.

0.5
400-00022

QD2919 DF9-41 ADAPTER:

This adapter has a Hirose DF9-41S-1V connector, and can be used to plug into a Hirose DF9-41P-1V header.

0.5
400-00032

QD7018-04C:

This 0.50mm pitch ZIF adapter board allows two 4 conductor FFC/FPC's to connect to each other.

0.50 4
400-00033

QD7018-10C:

This 0.50mm pitch ZIF adapter board allows two 10 conductor FFC/FPC's to connect to each other.

0.50 10
400-00034

QD7018-20C:

This 0.50mm pitch ZIF adapter board allows two 20 conductor FFC/FPC's to connect to each other.

0.50 20
400-00035

QD7018-33C:

This 0.50mm pitch ZIF adapter board allows two 33 conductor FFC/FPC's to connect to each other.

0.50 33
400-00036

QD7018-40C:

This 0.50mm pitch ZIF adapter board allows two 40 conductor FFC/FPC's to connect to each other.

0.50 40
400-00037

QD7018-45C:

This 0.50mm pitch ZIF adapter board allows two 45 conductor FFC/FPC's to connect to each other.

0.50 45
400-00038

QD7018-50C:

This 0.50mm pitch ZIF adapter board allows two 50 conductor FFC/FPC's to connect to each other.

0.50 50
