Category: Bulk Cable and Specialty Wire

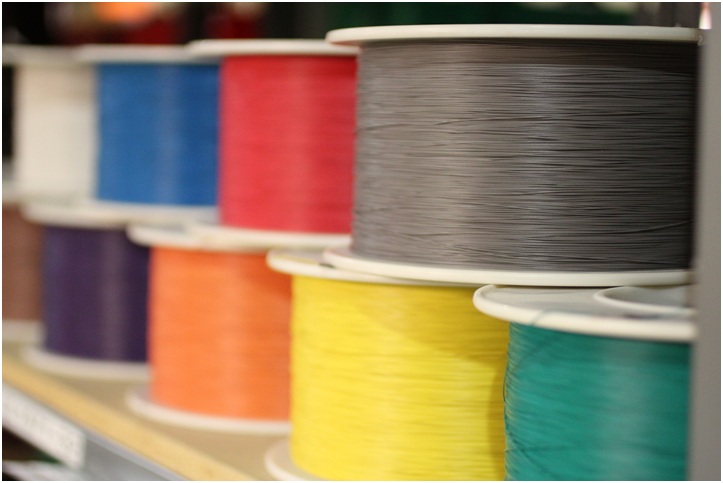

Quadrangle offers certain bulk wires and cables which are used frequently in the production of our products. In some cases these wires are made specifically for Quadrangle Products by our suppliers. Our UL20276 wires are most commonly found in LVDS application, but can also be used for other 100ohm data transmission requirements. UL3239 3KV High Voltage cable is most commonly found in CCFL backlight application. Most recently added to our offerings is our Halogen Free Wire. Due to trends in the industry based around environmental, health and RoHS concerns for Halogens (eg PVC), Quadrangle has acquired a new Cross Linked 28AWG PVC FREE hookup wire which can be used seamlessly, and interchangeable with the much more standard and common UL1571 PVC wire. In an effort to set the curve and continue to set an example as industry innovators, Quadrangle has begun implementing this wire 2 years prior to the pending environmental, medical and RoHS 2 requirements.

  • High Voltage UL3239 3KV Wire (Pink & White)
  • UL20276 bulk cable in several configurations with twisted pairs (P) and single conductors (C)
    •  5P + 10C (30awg)
    • 10P + 10C (30awg)
    • 10P (28awg)
    • 17P (28awg)
    • 25P (28awg)
  • Sold by the foot or by the reel
  • In stock - ready to ship
  • Halogen free hookup wire

Inquire with our Engineering team to receive a quote on any of the bulk wire and cables listed above. More available upon request. Value Added services such as labeling, stripping, tinning, twisting etc. are also available upon request.

Bulk Cable and Specialty Wire

Item Code Image Description Pitch (mm) Conductors Orientation Plating Length (in) Length (mm) File
100-00561

UL21104 10P+10C:

This halogen free shielded and jacketed wire has 10 twisted pairs conductor wires, and 10 untwisted conductor wires. Each wire is AWG 30 wire.

100-00560

UL21104 5P+10C:

This halogen free shielded and jacketed wire has 5 twisted pairs conductor wires, and 10 untwisted conductor wires. Each wire is AWG 30 wire.

100-00405

UL20276 10P+10C:

This shielded and jacketed wire has 10 twisted pairs conductor wires, and 10 untwisted conductor wires. Each wire is AWG 30 wire, and the jacket is PVC.

100-00407

UL20276 5P+10C:

This shielded and jacketed wire has 5 twisted pairs conductor wires, and 10 untwisted conductor wires. Each wire is AWG 30 wire, and the jacket is PVC.

100-00408

UL20276 10 Pair:

This shielded and jacketed wire has 10 twisted pairs conductor wires. Each wire is AWG 28 wire, and the jacket is PVC.

100-00409

UL20276 17 Pair:

This shielded and jacketed wire has 17 twisted pairs conductor wires. Each wire is AWG 28 wire, and the jacket is PVC.

100-00410

UL20276 25 Pair:

This shielded and jacketed wire has 25 twisted pairs conductor wires. Each wire is AWG 28 wire, and the jacket is PVC.

100-00412

UL3239 3KV 24(19) PINK

100-00413

UL3239 3KV 24(19) WHITE
