QD23341: MOLEX 51146-0500 TO JST PHR CRIMPS

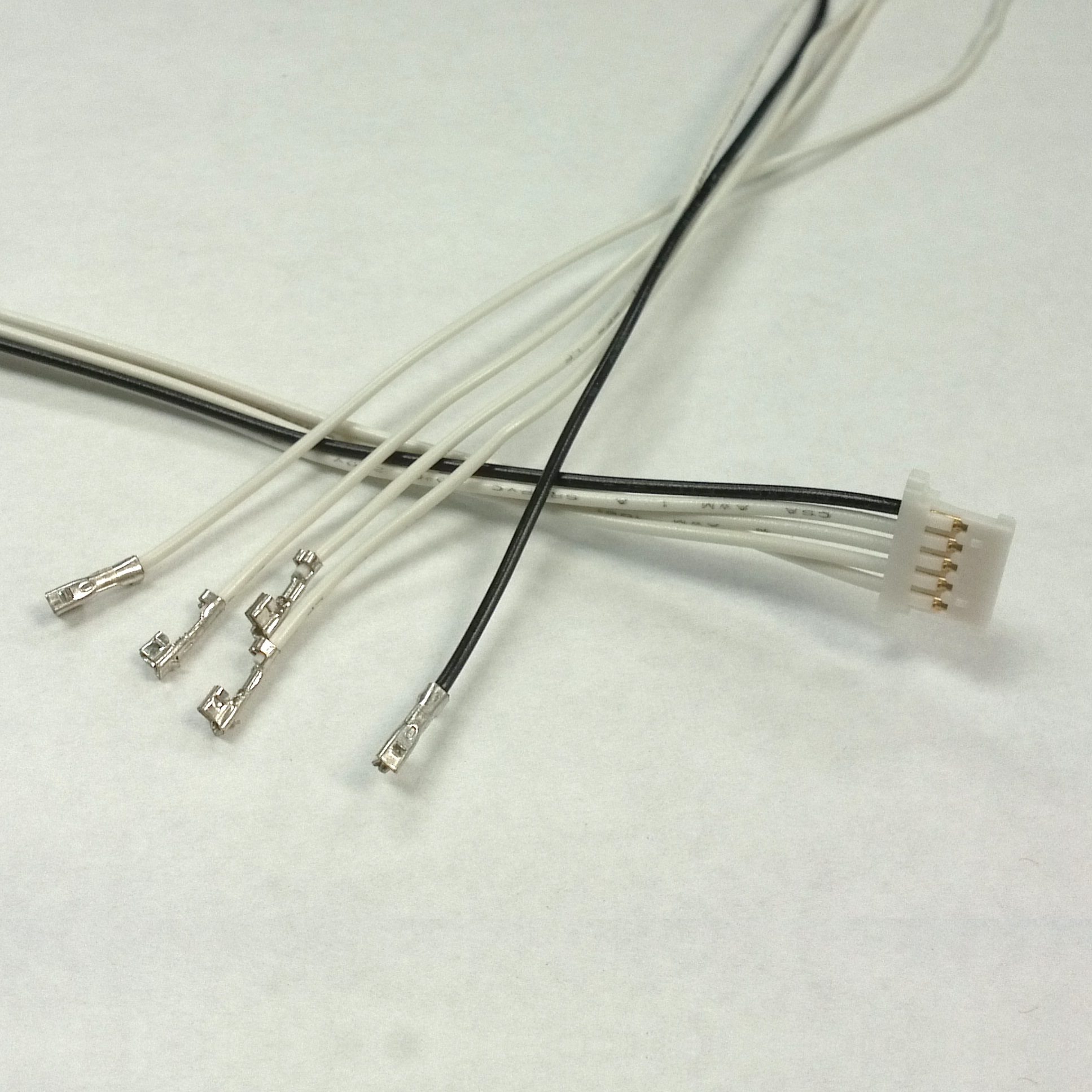

This development kit has a MOLEX 51146-0500 (or equal) flying lead with JST SPH-002T-P0.5S crimps on the other end. These crimped wires can be inserted into any JST PHR series connector.
CN1 connector mates with the following pin headers:
Molex 53780-0570, STM MSB24038P5, ENTERY 3808K-F05N
CN2 crimps insert into connectors that will mate with:
JST B5B-PH-K-S, JST S5B-PH-K-S, MS24265, M24265, TE 440054-5, CI0105P, 2000-WS-05P, JST B4B-PH-K-S, JST S4B-PH-K-S, MS24264, M24264, TE 440054-4, CI0104P, 2000-WS-04P, JST B6B-PH-K-S, JST S6B-PH-K-S, MS24266, M24266, TE 440054-6, CI0106P, 2000-WS-06P, JST B8B-PH-K-S, JST S8B-PH-K-S, MS24268, M24268, TE 440054-8, CI0108P, 2000-WS-08P, CHYAO SHIUNN JS-1124-04, JS-1124-05
| Pitch (mm) | Conductors | Orientation | Plating | Length (mm) | Length (in) |
|---|---|---|---|---|---|
| 24.0" |
